产品介绍：KLD-F空气型母线槽

凯 朗 德 电 力 母线槽系列

KAILANGDE   Busbar   Systems

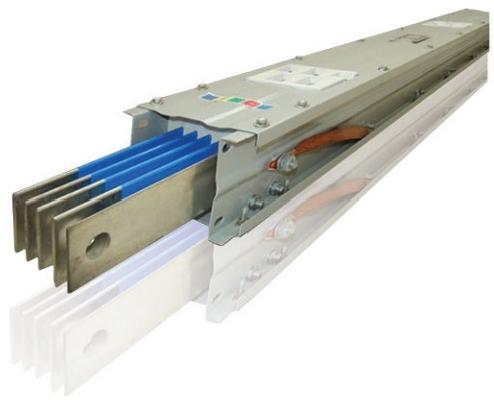

KLD-F 系列空气型母线槽 KLD-F Series Air Bus Groove

产 品 选 型 Product    selection

4: 三相四线制；5:三相五线制

4:Three-phase four-wire system;5:Three-phase five-wire system

额定电流 Rated current:

250、400、500、630、800、1000、1250、1600、

2000、2500、3150、4000、5000、6300

——T:    铜 排 ；L:   铝 排 ；F:   铜铝复合排

T:Copper Bar;L:Aluminum Bar;F:Copper-Aluminum Composite Bar

G: 钢制壳体；L: 铝合金壳体

G:Steel shell;L:Aluminum alloy shell

空气型母线

Air bus

凯朗德电力科技有限公司

Kailangde Electric Power Technology Co.,Ltd.

例 ：KLD-F-G-T-1000A/4P:    凯朗德空气型母线，钢制壳体、铜排导体、额定电流1000A、 三相四线制。

Example:KLD-F-G-T-1000A/4P:Kailangde airbus,steel shell,copper conductor,rated current 1000A,three-phase four-wire system.

适 用 范 围 Scope       application

CFW 系列空气型母线槽适用于交流三相四线、三相五线 制，频率50～60Hz,   额定电压至660V,   额定工作电流 250～6300A   的供配电系统，承担配电任务，用于低压配 电屏与大、中型负载的连接，主要应用于现代化的车间、

厂房和高层建筑。

CFW series airbus grooves are suitable for AC three-phase four-wire and three-phase five-wire systems with frequencies of 50-60 Hz,rated voltage of 660 V and rated working current of   250-6300A.They   undertake   distribution   tasks   and   are used to connect low-voltage distribution panels with large and medium-sized loads.They are mainly used in modern workshops,factories and high-rise buildings.

KLD-F 系列空气型母线槽

KLD-F Series Air Bus Groove

产品特点 Product characteristics

1.分离空气绝缘，绝缘效果好；其相间的安全净距和爬电 距离远远大于标准要求。尺寸紧凑；电压降较低；易于安

装；传输能效更好；未来灵活的扩充；外观协调。

2.母线选用高导电率的铜或铝导体材料，经过表面处理 等加工处理后，用PVC热缩套管整体包覆，相间用高强度 环氧树脂绝缘块隔开，使母排得到双重绝缘保护，绝缘性 能大大提高，然后封闭在接地的金属外壳内。极为安全可

靠。

3.母线外壳采用优质高强度冷轧钢或铝镁合金型材制作， 不仅外形美观大方，更大大增强母线槽的机械强度和系统 的动热稳定性，可彻底解决施工现场大跨距安装的难题。 根据系统需求，可在母线槽任意位置设置插接口，安装快

捷，分接方便，使用安全。

4.采用对接式安装方式，使得母线槽在安装过程中显得非

常便捷、灵活，大大节省了安装时间；安装极为方便。

1.Separation of air insulation,insulation effect is good;the safe net distance and creepage distance between them are far greater than the standard requirements.Compact size;low voltage drop;easy installation;better transmission efficiency; flexible expansion in the future;appearance coordination.

2.The busbar is made of copper or aluminium conductors with high conductivity.After surface treatment and other processing,the busbar is coated with PVC heat shrinkable sleeve.The busbar is separated by high strength epoxy resin insulating blocks,so that the busbar can be protected by double insulation,the insulation performance is greatly improved,and then sealed in the grounded metal shell.Very safe and reliable.

3.The busbar shell is made of high-quality and high-strength cold-rolled steel or Al-Mg alloy profiles.It not only has a beautiful appearance,but also greatly enhances the mechanical strength of busbar groove and the dynamic and thermal stability of the system.It can thoroughly solve the problem of large-span installation in construction site.According to the system requirements,plug-in interface can be set at any position of bus bar,which is fast to install,convenient to disconnect and safe to use.

4.Adopting docking installation mode makes busbarslot very convenient and flexible in the process of installation,which greatly saves installation time and is very convenient to install.

主要技术参数 Main technical parameters

1. 频率50～60Hz,   额定电压至660V,   额定工作电流

250～6300A

2.母线槽能保证在额定电流及100%的额定电压下长期正

常工作。

3. 母线槽在周围空气温度为20±5℃,相对湿度为

50~70%的常态下，其每节的绝缘电阻不低于20MΩ

4.母线槽能承受2500V工频耐压，历时1min 无击穿和闪

络现象。

5.插接箱与母线槽的插接次数不少于200次。

6.防护等级达IP30-40。

1.Frequency 50-60Hz,rated voltage 660V,rated working current 250-6300A.

2.Busbar slot can ensure long-term normal operation under rated current and 100%rated voltage.

3.The insulation resistance of busbarslot is not less than 20M under the normal condition of ambient air temperature 20+5 C and relative humidity 50~70%.

4.Bus channel can withstand 2500V power frequency withstand voltage,and lasts 1 minute without breakdown and flashover.   5.The number of plug-in between the plug-in box and bus channel is not less than 200.

6.The protection level is IP30-40.
